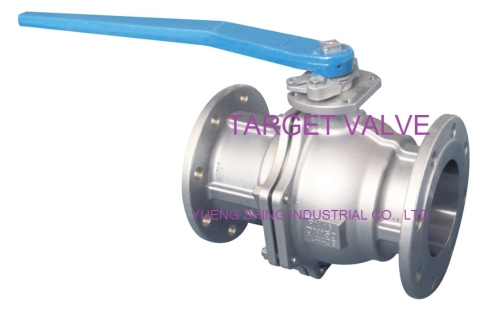

2-PC Flanged Ball Valve
- Model:
- V2FPN16F1
- Country of Origin:
- Taiwan
- Material:
- EN10213-1.4408, EN10213-1.4308, EN10213-1.4409,
Detail Specifications / Descriptions
✽ Full Port 6" / Reduced Port 8"
✽ Investment Casting
✽ Material: EN10213-1.4408, EN10213-1.4308, EN10213-1.4409, EN10213-1.0619
✽ Working Pressure: DIN PN16 (RF)
✽ Size Ranging: 6" & 8" (DN150 & DN200)
✽ Flange Dimension : DIN2543
✽ Face to Face Dimension : DIN 3202 / F1 TYPE
✽ Antistatic Stem
✽ With ISO 5211 Mounting Pad
✽ Options: FCD Operation
