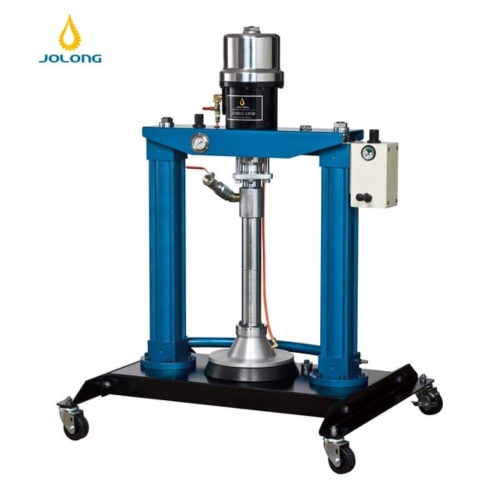

Pressurized Fluid Pump

Pressurized Fluid Pump

Model:
HV102
Country of Origin:
Taiwan

Detail Specifications / Descriptions

The Outside Dimension:
Length: 800 mm
Width: 900 mm
Mini Height: 1120 mm
Max Height: 1620 mm

Mode: HV102
Capacity: 20L
Air Input Pressure: 3~7 bar 40~100 psi
Pressure Ratio: 50:1
Grease Output Pressure: 150~350 bar 2000~5000 psi
Deliver Rate: 26 g/cycle
Hose Length: -
N.W.: 90 kgs
G.W.: 124 kgs
CUFT: 16.2’

This pump use for suction No.0 ~ No.3 and high viscosity grease; it had two pneumatic cylinder to push the grease and make the pump shovel the grease easily.
