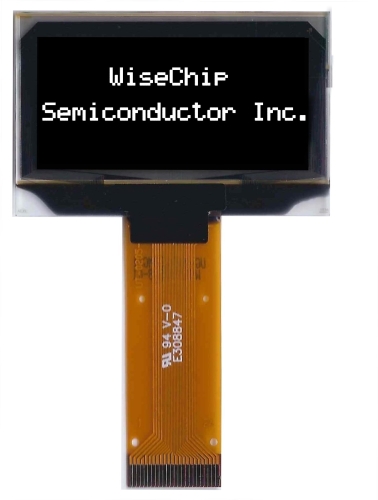

Monochrome Displays 1.54”
- Model:
- UG-2864KLBMG01/UG-2864KSWMG01/UG-2864KSYMG01
- Country of Origin:
- Taiwan
- Color:
- Light Blue、White、Yellow
Detail Specifications / Descriptions
• Diagonal Screen Size：1.54"
• Number of Pixels：128 × 64
• Color Depth：Monochrome (Light Blue、White、Yellow)
• Module Construction：COG
• Module Size (mm)：42.04 × 63.22 × 1.45
• Panel Size (mm)：42.04 × 27.22 × 1.45
• Active Area (mm)：35.052 × 17.516
• Pixel Pitch (mm)：0.274 × 0.274
• Pixel Size (mm)：0.254 × 0.254
• Weight (g)：3.28
• Duty：1/64
• Brightness ( cd/m²)：120 (Typ) @ 12.5V
• Interface：Parallel, 4-wire SPI, I2C
• Assembly：Connector
