Area Imager Bar Code Scanner

Descriptions

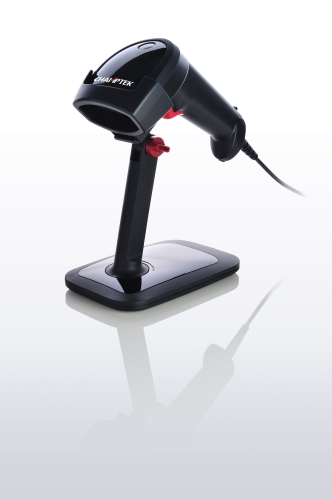

The IG700 is a high performance handheld 2D image scanner which provides the customer with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retailers using POS environment. The IG700 supports 1D/2D barcode scanning. The reading depth is up to 440 mm. The scan rate is up to 200 scans/sec in linear emulation and 56 images/sec in 2D mode.


Specifications

Performance
◎ Light Source 650± 5nm Red LED
◎ Depth of Field 440 mm@20mil/0.5mm, PCS90%
◎ Field of View Horizontal - 38.9°, Vertical - 25.4°
◎ Scan Rate 200 scans per second in 1D mode
◎ 56 images per second in 2D mode
◎ Resolution 752 (H) x 480 (V) pixels, 5mil@Code39
◎ Print contrast ratio 25%
◎ Indicator Beep and LED (wired Good read Green)
◎ Interface RS-232/USB(HID KBW or Virtual comport), Keyboard wedge

Physical
◎ Color available Black (Cap and Grip) or Gray(Cap)and Beige(Grip)
◎ Dimensions (WxHxL) 75 x 171.31 x 82.85 mm
◎ Weight 166g

Electronic
◎ Input Voltage DC +5V ± 5%
◎ Operating current 410mA
◎ Standby current 56mA

Environmental
◎ Ambient light Up to 96,000 Lux.
◎ Operating temperature 0°C to 50°C (32°F to 122°F)
◎ Storage temperature -20 °C to 60°C (-4 °F to 144°F)
◎ Drop resistance 70.86 inches(180cm) drop on concrete surface
◎ Sealing IP54 sealing protection
◎ Symbologies Automatically discriminates major standard 1D and 2D bar codes,
