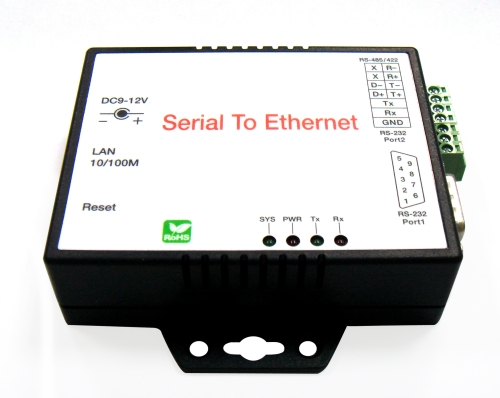

Ethernet to RS-232/422/485

Ethernet to RS-232/422/485

Model:
E-P232-X
Country of Origin:
Taiwan
Material:
Steel
Color:
White

Detail Specifications / Descriptions

2 Ports Serial To Ethernet Data Gateway
ARM Cortex-M3 32-bit CPU !D High Performance
Support 4 Host Simultaneous Connections
Auto Reset when IDLE Detects
Virtual COM Driver for Windows 7/Vista/XP/2003/2000
Built-in Web-Server !D Easy Configuration
Firmware
On-line Updated Via Ethernet
Power
DC 9 ~ 24 V, 500 mA, 300 mA @ 12VDC
Over Current & Reverse Protection
LED Indicators
SYS (PWR), LAN, LAN Rx, LAN Tx
Environment
Operating Temperature!G0 ~ +70?J
Storage Temperature!G-10 ~ +80?J
Dimensions
115 * 90 * 27 mm ( W * D * H )
Weight
140 g
Din-Rail / Wall Mountable
Regulatory Approvals
CE / FCC
RoHS
Warranty
1 year
