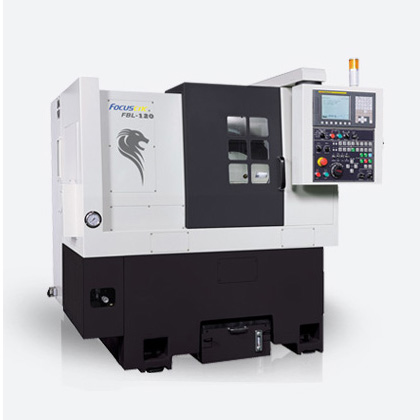

CNC Lathe with Box Guide-way

* 30° slant back designed for high stability and precision and excellent filing removal (rear filing remover optional); super-exacting width for significantly minimized footprint
* May work with robotic arm for automatic loading/unloading to greatly raise production efficiency
* Quick loading/unloading; built-in robotic arm to save window opening/closing time while also avoiding oil mist scatter
* Clean, tidy and minimal footprint for easier setup of production lines
* Tilting turntable loader and disc loader optional
* HMI coupled with 5.7” LCD (6.5” colored optional) for easier use, operation
* Standard, HMI robot control system enables users to set point-to-point, linear interpolation flow
* Hydraulic 8-tool turret for precise, 0.25sec tool change (servo 10-tool turret optional)
* FBL-120 spindle with NN-type bearings of 4,000rpm, quick, 20m/min. displacement, ideal for intermittent cutting of harder parts, gears etc.
