Toroidal Core
Detail Specifications / Descriptions

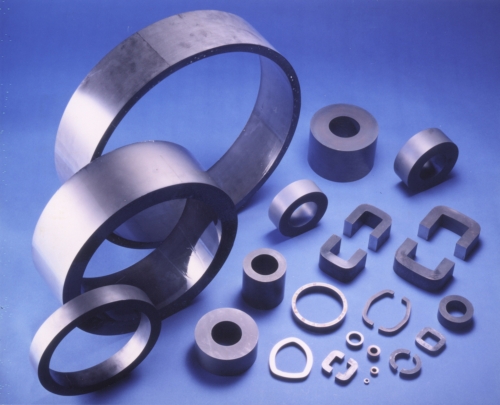

We devote to manufacture transformer lamination for industrial uses. With material of JFE CRGO and annealing, the product can fully release the qualities of grain-oriented electrical steel. An ideal coil is distributed evenly all around the circumference of the torus. The symmetry of this geometry creates a magnetic field of circular loops inside the core. This not only makes a highly efficient transformer, but also reduces the electromagnetic interference radiated by the coil.
The desirable features are: high efficiency, stable quality, compact volume, light, low magnetic leakage and hum, and minimal electromagnetic interference.
From slitting, winding, annealing and shipping are all in-house process, the one-single stop is not just cost-effective but also total solution.
Materials:
* Code: 20JGH090
Thickness: 0.20mm
frequency: 50Hz
Iron Loss (W/lbs @ 1.7T/50Hz): 0.28
* Code: 27JGH100
Thickness: 0.27mm
frequency: 50Hz
Iron Loss (W/lbs @ 1.7T/50Hz): 0.32
* Code: 30JGH105
Thickness: 0.30mm
frequency: 50Hz
Iron Loss (W/lbs @ 1.7T/50Hz): 0.34
* Code: 30JG140
Thickness: 0.30mm
frequency: 50Hz
Iron Loss (W/lbs @ 1.7T/50Hz): 0.41
Application:
power transformer, current transformer, inductor, Rectifier, audio transformer, magnetic amplifier, regulator, sensor
Industrials:
medical equipments, home appliance, audio, IT, OA equipments, military use.
Capability:
ID: 10mm~ 790mm
Height/Width: 5mm ~ 1100mm
