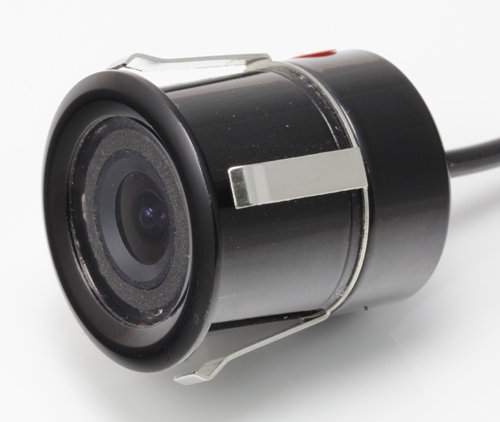

Camera
- Model:
- YT-302
Detail Specifications / Descriptions
Lmage Senaor:COMS 1/4 MT9V136 Camera
Effective Pixel:PAL:628(H)x582(V) NTSC:510(H)x 492(V)
Tv System:PAL/NTSC
Minimum Lumination:0.1Lux
Resolution:420 TV lines
Operating Temperature:-20 to + 70°C, 95% RH maximum
Power Supply:DC 9-16V
Current consumption:70mA
Lens Angle:150º
Water proof:IP67
Video Output:1.0Vp-p 75ohm
S/N Ratio:better than 48dB
Imame:Mirror Back View
Electronic shutter:1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
Dimension Dia.:26mm
Night IR
