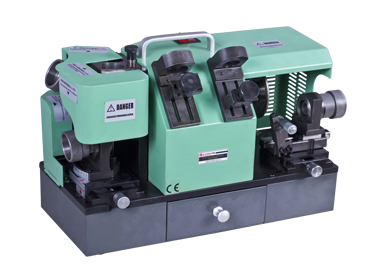

End Mill Grinder
- Model:
- LG-X6
Detail Specifications / Descriptions
Portable idiot end mill grinder, can grind 2-flute, 3-flute, 4-flute, 6-flute end mill.
Grinding is accurate and rapid, easy operation with no skill to grind.
With diamond grinding wheel, only one piece can complete all procedues.
It can be equipped dirctly with an accurate angle and long service life.
Technical parameters:
Mill diameter: ф4-ф14
Point angle: 0°-5°
Motor: 220V 180W
Speed: 5300rpm
Diamond wheel: CBN or SDC
Standard collets: ф4、ф6、ф8、ф10、ф12、ф14
Dimension: 40×24×30cm
Net weight: 19kg
