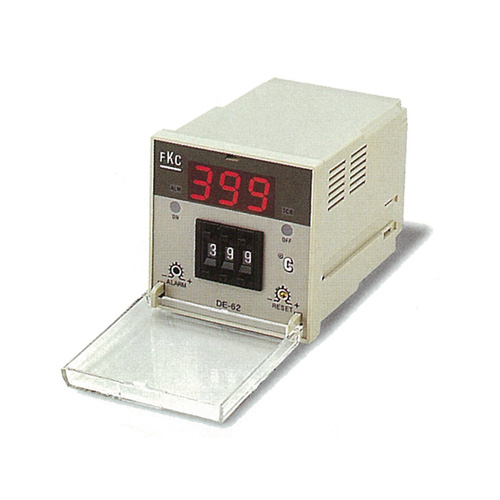

Automatic Temperature Controllers
- Model:
- DE-62
Detail Specifications / Descriptions
Features:
* Plug-in connection facilitate maintenance, inspections and replacement of instrument.
* Solid state circuritry.
* No need for external resistance adjustment.
* Minimum panel space requirements.
* Shock and vibration resistant.
Specifications:
1. Operation principle: Potential balance type.
2. Setting accuracy: Better than ± 1% of full scale.
3. Proportional cycle time: Approximately 30 secs.
4. Proportional band: Approximately 3% of full scale.
5. Ambient temperature: 10 ~ + 55°C
6. Power input voltage: AC 110V/220V, 50/60HZ.AC380V, option
7. Output:
Relay ………… 110V ………… 7.5A
Relay ………… 220V ………… 5.0A
SSR. Driver ………………………….
SCR ………………………... 4-20mA
8. Input J(IC), K(CA), PT100 OHM Option (0-1V, 4~20mA available)
9. High-Low Alarm: 10% Full Scale
10. Size: 72x72mm series
