Switching Power Supply
- Model:

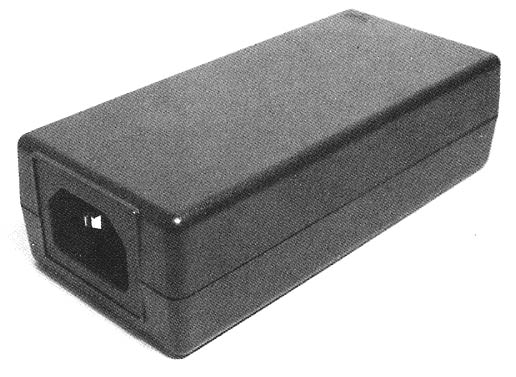

- 40 Watt External Power Supply
Detail Specifications / Descriptions
Features:
Universal input 100 to 240 VAC
Single, dual output options
Overload protection
100% Hi-Pot tested
100% cycling burnt-in
Output Specifications:
Line regulation 1%
Load regulation ±5%
Efficiency 80%
Hold up time 16ms
Transient response Main output 50-100% load 50% duty cycle
Protections: -- Over current -- Over voltage
-- Over power
-- Short circuit protections
Input Specifications:
Input voltage 90 to 264VAC
Input frequency 47 to 63 Hz
Input current 1.2A max.
Inrush current 50A max.
Electrical Specifications:
Dielectric strength test input/output: 4242VDC, input/output: 2121VDC
Leakage current <3.5mA
MTBF Min. 50,000 hours MIL-HDBK-217F
Environmental Specifications:
Operating temperature 0~40°C
Non-operating -20~80°C
Relative humidity non-condensing 10~85%
Convection cooling
Vibration 2.0G, 10-300Hz
Safety:
UL, cUL, CE
Please contact our sales representative for other safety marks.
