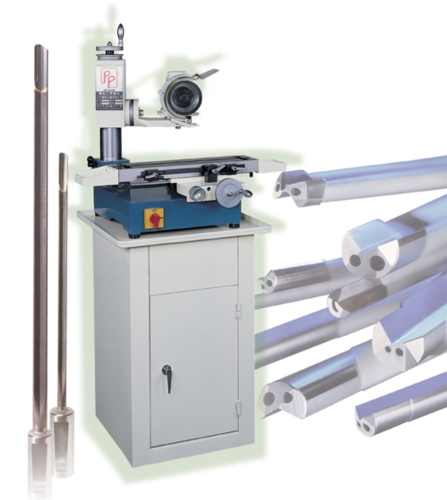

Gun Drill Grinder
- Model:
- PP-600
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
■ Adopt precise 6 pawl chuck, could grind the 6 faces of the gun drill just be clipped one time. Any sizes could be ground and could keep the gun drill center without off center.
■ Use the leverage, could grind the inner angle and out angle of the gun drill at the same time.
■ Simple and safe operation, anybody could quickly learn how to use
Working table area：125x520 mm
Vertical adjustment of wheel head：140 mm
Rotary angle of wheel head：360°
Longitudinal travel of table：185 mm
Cross travel of saddle：120 mm
Size of wheel： 125x50x31.75 mm
Speed of motor：3600 RPM
Motor：1/2HP 110V/220V/380V
N.W/G.W.：190 kgs/ 240 kgs
Size of packing (LxWxH)：770x800x1540 mm
