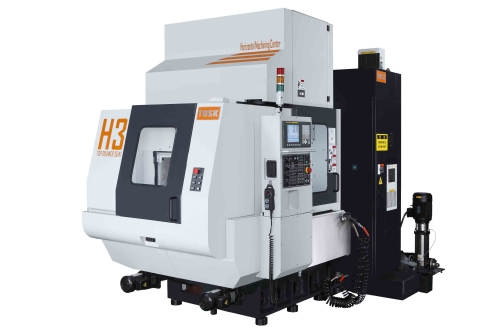

CNC Horizontal Machining Center

CNC Horizontal Machining Center

Model:
H3
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Its very small floor footprint is achieved with downsized tool magazine built atop the unit that works without guide or lateral-moving device, vastly simplifying design without compromising reliability to also cut cost, with rapid tool changer to significantly raise efficiency. The cost of two TDSK H300s equals one existing, bigger counterpart with H500 worktable, with each TDSK H300 featuring faster tool, pallet change, in-feed and spindle speed, hence achieving 2.6 times the output with the same investment.

*Travel: X-axis: 460mm, Y-axis: 350mm, Z-axis: 350mm
*Work table: 300 x 300mm
*Maximum loading capacity: 120kg
*Maximum work piece: ø455 x 410mm
*Spindle: #40, belt-driven @ 10,000rpm
*X/Y/Z-axis feed speed: 48/48/48 m/min.
*X/Y/Z-axis machining: 12/12/12 m/min.
*Chain-type tool magazine

Company: TOP DRAWER SEIKI CO., LTD.
