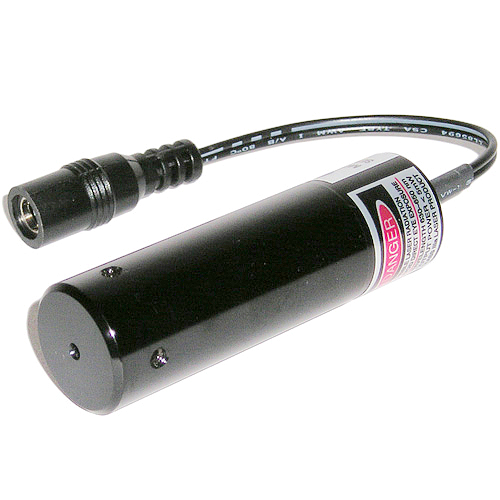

Coaxial Point Mark-KML-2000CP-20 series

Coaxial Point Mark-KML-2000CP-20 series

Model:
KML-2501CP-20 / KML-2502CP-20 / KML-2503CP-20
Country of Origin:
Taiwan

Detail Specifications / Descriptions

波長Wavelength:630 ~ 650 nm 可見紅光(RED)

輸出功率Output Power:1 mW / 2 mW / 3 mW

標點直徑Point Dia:≦3 mm 固定焦距 (Focus Fixed)

輸入電壓Input Voltage:乾電池 LITHIUM CR123 DC3 V (Battery Only)


操作溫度Operating Temp.:– 10 ~ 50 °C

安全等級Safety Class:Class Ⅱ / Class Ⅲa

使用壽命Lifetimes:>15,000 小時 (hr)

外觀尺寸Dimensions:D 20 X L 83 (mm)

重量Weight:40 ± 5 公克 ( g ) (Without Battery) / 56 ± 5 公克 (g) (With Battery)


● 鋼材鑽孔定位 Steel drillong location
● 木材打釘加工 Fixing timber processing
● 鈕扣鉚合加工 Buttons riveting process
● PCB加工 PCB processing
● 光軸校準 Axis calibration
● 基準點定位 Reference point for processing






特殊規格歡迎來電洽詢Special specifications please contact us


Coaxial Point Mark-KML-2000CP-20 series
