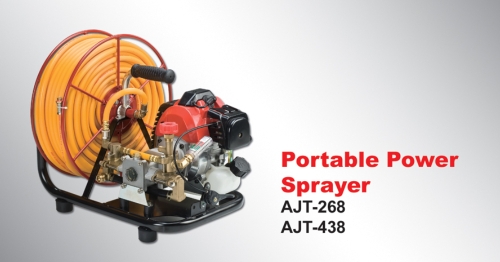

Portable Power Sprayer

Portable Power Sprayer

產品型號:
AJT-268/AJT-438
原產地:
台灣

詳細規格及用途描述

Model No.:AJT-268M
Pump: Horizontal gear-driving type
Plunger: 1 unit (two-way operation)
Cylinder: 2 units
Dia. of plunger: 16mm
Stroke: 9mm
Spraying volume: 7.2liter/min
Pressure: 30-35 kg/cm2
Engine: Taiwan (AJT-26)
Horsepower: 1.4 HP
Air consumption: 25.6 c.c.
Length of hose: 20m-50m
Mixing ratio of fuel: 25:1
L x W x H: 52 x 34 x 34 (cm)
Weight: 16.5kg

Model No.:AJT-438M
Pump: Horizontal gear-driving type
Plunger: 1 unit (two-way operation)
Cylinder: 2 units
Dia. of plunger: 18mm
Stroke: 9mm
Spraying volume: 8.5 liter/min
Pressure: 35-40 kg/cm2
Engine: Taiwan (AJT-43)
Horsepower: 2 HP
Air consumption: 43 c.c.
Length of hose: 20m-100m
Mixing ratio of fuel: 25:1
L x W x H: 52 x 34 x 34 (cm)
Weight: 17.9kg
