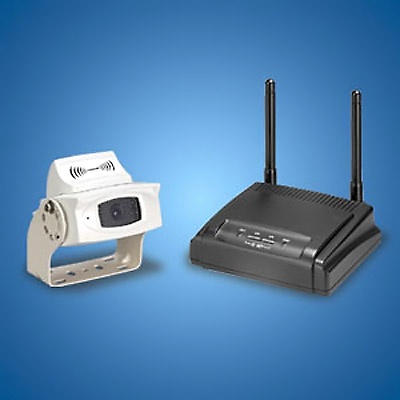

1. W-2400R: camera control box
. 2. 4GHz Receiving Band: 2400 ~ 2483MHz (ISM band)
. 2. 4GHz Channel Frequency:
. CH1: 2414MHz
. CH2: 2432MHz
. CH3: 2450MHz
. CH4: 2468MHz
. 433MHz Transmitting Frequency: 433. 92MHz or 434. 33MHz
. Control Data Modulation: FSK
. Control Data Communication Type: half-duplex
. Power Voltage: 12VDC
2. CA-2400TB: black and white outdoor mounted camera
. 2. 4GHz Receiver Band: 2400 to 2483MHz (ISM band)
. 2. 4GHz Channel Frequency:
. CH1: 2414MHz
. CH2: 2432MHz
. CH3: 2450MHz
. CH4: 2468MHz
. Video Modulation Type: FM
. Audio Modulation Type: FM-FM
. 433MHz Transmitting Frequency: 433. 92MHz or 434. 33MHz
. Power Voltage: 12 to 24VDC
. Image Sensor: 1/3 inch black and white CCD
. Required Illumination: 0 luk/0 ~ 3m
. Scanning Frequency:
. EIA: 15,750Hz
. CCIR: 15,625Hz
. Horizontal Resolution: 420 TV lines
. Shock Resistance: 50G
. Vibration Resistance: 10G
. Water Resistance: IP66 with audio, IP67 without audio
. Lens: angular diagonal 120 degrees, F = 3. 0mm (±5%) |
|
