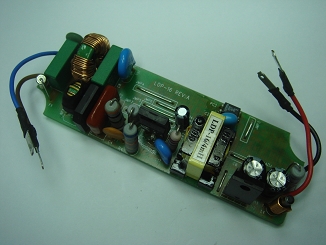

內置式發光二極體LED驅動器

內置式發光二極體LED驅動器

產品型號:
LED016
原產地:
台灣

詳細規格及用途描述

ELECTRICAL SPECIFICATIONS :
INPUT
Input voltage : 100-240Vac
Input frequency : 47 - 63 Hz
Input current : 0.4Arms max.
Efficiency : 80~85% typical at full load
Total harmonic distortion : 20% max.
Power factor : 90% min. at full load
OUTPUT
Output rating : as rating charts
Line regulation : 1%
Load regulation : 5%
Constant current tolerance : 5%
Ripple & noise Vp-p : 1%(CV) 10%(CC) max.
Output power : as rating chart
PROTECTION :
Over voltage protection : Auto recovery
Short circuit & overpower protection : Built-in
FEATURES
Alumimum Chassis or black anodized
Optional 1-10V dimming
Optional mains dimming
Optional CV or CC output
Optional IP65 rated for outdoor application
ENVIRONMENT
Operating : full load -20-50℃ convection
Non-operating : -20-85℃
Shock : MIL-STD-610C 516 Part V
Vibration : 10-500 Hz. 16 mins/cycle/axis

DIMENSION : 110x38x28mm

ITEM Model No. Output Io max.
1 LDP016-12A-BC 7-12V 1.33A
2 LDP016-18A-BC 12~18V 0.90A
3 LDP016-24A-BC 15~24V 0.67A
4 LDP016-30A-BC 21~30V 0.60A
5 LDP016-36A-BC 25~36V 0.50A
6 LDP016-42A-BC 30~42V 0.45A
7 LDP016-48A-BC 39~48V 0.40A
8 LDP016-54A-BC 39~54V 0.35A
Remark : Io can be set below the max.
MODEL SELECTION GUIDE:
A : 0=Constant current CC output
1=Constant voltage CV output
2=1-10V dimmable
3=mains dimmable
B : 0=non-IP construction
1=IP65 outdoor rated
C : 0=Plastic case
1=Open frame module
EMC Standards
FCC part 15 Class B
CISPR 15 Class B
CE EN 55015, EN61547
EN61000-3-2, EN61000-3-3
IEC 61000-4 Series
Safety Standards
UL : UL1310 class 2
cUL:CAN/CSA C22.2 NO. 223-M91
CE : EN61347-1, EN61347-2-13, EN62384
