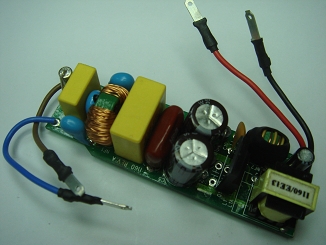

I160球燈泡發光二極體LED驅動器

I160球燈泡發光二極體LED驅動器

產品型號:
I160
原產地:
台灣

詳細規格及用途描述

ELECTRICAL SPECIFICATIONS :
INPUT
Input voltage : 100-240Vac
Input frequency : 47 - 63 Hz
Input current : 0.5Arms max.
Efficiency : 83~90% typical at full load
Power factor : 90% min. at full load

OUTPUT
Output rating : as rating charts
Line regulation : 1%
Load regulation : 5%
Constant current tolerance : 5%
Ripple & noise Vp-p : 10% max.
Output power : as rating chart


ENVIRONMENT
Operating : full load -20-50℃ convection
Non-operating : -20-85℃
Shock : MIL-STD-610C 516 Part V
Vibration : 10-500 Hz. 16 mins/cycle/axis


FEATURE
Low cost
High efficiency
Non-isolated
Small size
High pfc

DIMENSION : 75x23x20mm

ITEM Model No. Output Io max. Eff.
1 I160-240 18~24V 350mA >83%
2 I160-300 24~30V 375mA >85%
3 I160-360 30~36V 360mA >87%
4 I160-450 36~45V 330mA >88%
5 I160-560 45~56V 300mA >90%
6 I160-680 57~68V 270mA >90%
Remark : Io can be set below the max.







EMC Standards
FCC part 15 Class B
CISPR 15 Class B
CE EN 55015, EN61547

I160球燈泡發光二極體LED驅動器
