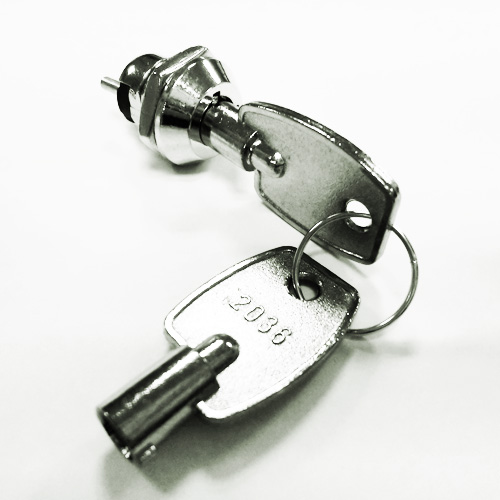

電源鎖
- 產品型號:
- S101
詳細規格及用途描述
Application:
Alarm, Computer System, Telephone, Security System…
Description:
* Zinc Alloy Die-cast housing and cylinder, chrome plated.
* Sliver Plated Contacts & Terminals.
* The Key can be drawn out at both ON and OFF position.
Specification:
* Contact Rating: 2A 125VAC, 1A 250VAC
* Contact Resistance: Max. 10 Milli-Ohms
* Insulation Resistance: Min. 500Meg-Ohms (500VDC)
* Dielectric Strength: 1000VAC-1 Minute.
* Weight: 17g / unit.
* Terminal: (S101A) 2 / (S101B) 2
* Key Pulls: (S101A) 2 / (S101B) 2
* Key Way: (S101A) 90° / (S101B) 90°
* Position: (S101A) OFF / ON; (S101B) ON / OFF
