產品資訊： Computerized Panel Cutting Machine
|
點繫照片放大

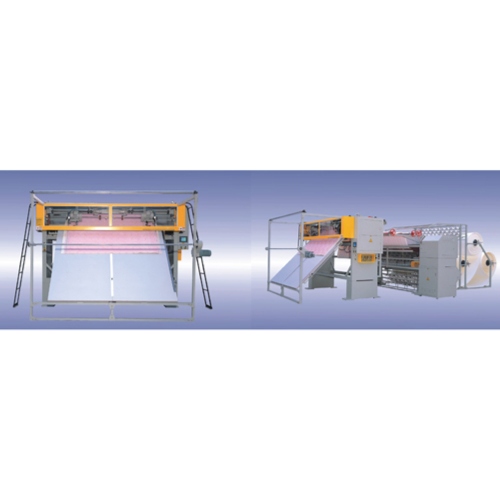

Computerized Panel Cutting Machine
|
| 產品基本描述 |
| 產品名稱： |
Computerized Panel Cutting Machine |
| 型號： |
HC-QG-D |
|
Special function:
● The machine is used to work with quilting machine, and also to work soley
● This machine is capable of cutting panels, borders, sides and material rolling
● Using touch screen and PLC control, therefore, operating and safeguarding the machine is easier.
● Infrared control, the precision is very high, operation is safe.
● Established sharpening device, to safeguard the blades.
● Stable, little vibration, low noise, and high efficiency.
● The machine adopts advanced design. and the Nation's first built.
Frame size(L×W×H): 3750×2500×2100mm
Weight : 1000kg
Length of board: 2000mm
Thickness : 5-50mm
Width: 100-2500mm
Speed: 7000mm/min
Power: 3KW
Power supply: 380V/220V 50Hz/60Hz
Air pressure: 0.4-0.8Mpa |
|
