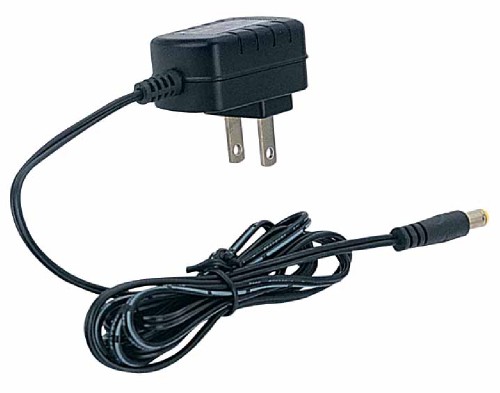

Switching Power Supplies

Switching Power Supplies

產品型號:
E1006

詳細規格及用途描述

Input Voltage Type: Universal Range
AC Input Voltage: 90-264 Vac
AC Input Frequency: 47-63 Hz
AC Input Current: 0. 1A RMS
No. of Outputs:Single O/P
Max. Outputs: 5 Watts
Load Regulation: +/-5%
Min. O/P Current: 0 Amp
Operating Temperature: 0~40℃
Protection:Short,OVP,OCP
MTBF: 35,000Hrs
Hold Up Time:10mS
safety: cUL,PSE/JQA CE
Weight: 60 g
Dimension: 49. 3(L)*32. 6(W)*21. 2(H)mm
