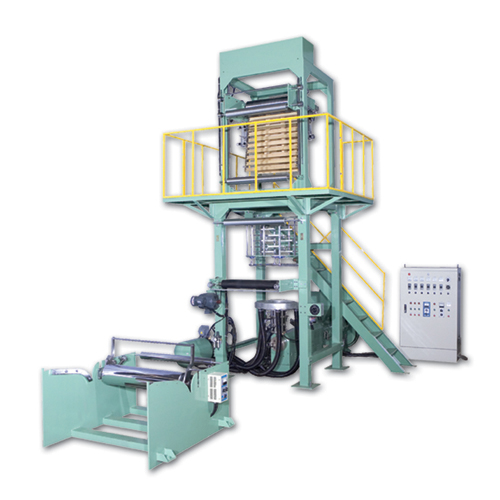

Super-High Speed HDPE Inflation Machine

Super-High Speed HDPE Inflation Machine

產品型號:
SPHD-45, SPHD-55, SPHD-65

詳細規格及用途描述

HDPE
SUPER-HIGH APEED
INFLATION MACHINE

MODEL: SPHD-45, SPHD-55, SPHD-65


SPECIFICATION:
MODEL SPHD-45 SPHD-55 SPHD-65

FEATURE LAYFLAT 400-850 m/m 500-1000 m/m 750-1500 m/m
THICKNESS OF FILM 0.01-0.15 m/m
MAX EXTRUSION OUTPUT 60KG 120 KG/HR 175 KG/HR




EXTRUDER SCREW DIA 45 m/m∮ 55 m/m∮ 65 m/m∮
SCREW L/D 30:1
SCREW MATERAL SCAM-1 STEEL WITH HARD WITH NITROGRN TREATMENT
CYLINDER MATERAL SCAM-1 STEEL WITH HARD WITH NITROGRN TREATMENT
DRIVING MOTOR 25 HP MOTOR 30 HP MOTOR 60 HP MOTOR
HEATER CAPACITY 12KW 16KW 22KW
DIES 70-100 m/m∮ 80-120 m/m∮ 150-200 m/m∮
CYLINDER COOLING BLOWER 1/16 HP BLOWERx2 1/16 HP BLOWERx3 1/16 HP BLOWERx4
CONTROL PANEL TYPE INDEPENDENCE TYPE SWITCH BOARD (BOX)
TEMPERATURE CONTROL 5 POINTS 6 POINTS 7 POINTS
COOLING EQUIP TYPE AIR COOLING SYSTEM
AIR BLOWER 5 HP 7 1/2 HP 10 HP
TAKE-UP UNIT MOVING RANGE 1000 m/m 1200 m/m
PINCH ROLLER(m/m) 165∮ x 900L 165∮ x 1100L 165∮ x 1700L
TAKE-UP MOTOR 2HP DC MOTOR 2HP DC MOTOR
TAKE-UP SPEED (m/min) 10-90
STEADY PLALE 1 UNIT
SUB-PINCH ROLLER 112∮x 900L 112∮x 1100L 112∮x 1700L
SUB-PINCH MAIN MOTOR 1 HP MOTOR 1 HP MOTOR 1 HP MOTOR
GUIDE MOTOR 15kg/cm 20kg/cm 20kg/cm
WINDING UNIT EFFECTIVE WIDTH 850m/m 1000m/m 1500m/m
DIA OF FILM WIND-UP 900m/m 900m/m 900m/m
WINDING MOTOR 1 HP DC MOTOR 2 HP DC MOTOR 3 HP DC MOTOR
SHIPPING INFORMATION MEASUREMENT (M3) 18 25 30
WEIGHT (KG) 3600 4000 4800
DIMENSION (LxWxH)(M) 5 x 3 x 5.5 5 x 3.5 x 6 5.5 x 3 x 5

公司名稱: 健鼎興業有限公司
