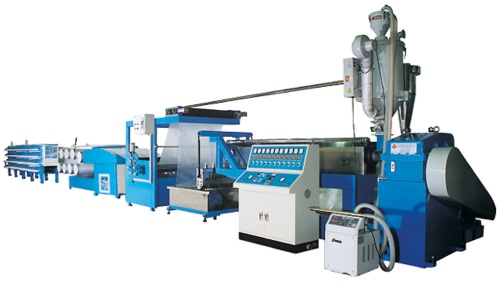

PP/HDPE High Speed Flat Yarn Extrusion Line
|
| 產品描述 |
| 產品名稱： |
PP/HDPE High Speed Flat Yarn Extrusion Line |
| 型號： |
HY-100W, HY-120W, HY/SP-90H, HY/SP-110H |
|
The extrusion machine is designed for producing PP/HDPE flat yarn. Maximum PP melting output. Capacity is 100-150&200-300 kg. hr, and the unit is equipped with a tube filter and rotary blade slitting system. The machine has less down time and prevents production loss. The pressure rollers of the take-off unit are pneumatically controlled, and have synchronized control electronic system. European screw, gearbox, static mixer, auto screen filter changer and human machinery interface fibrillator are available to meet special requirements.
Tensile strength 4. 5kg-5kg per 1. 000 Denier
Special request 6. 5kg per 1. 000 Denier
Flat yarn denier : 700-1. 500 Denier
Special request : 1. 000-6. 000 Denier
Stretching Ratio : 3-9 Times
Quenching system : water bath or chill roll |
|
|
