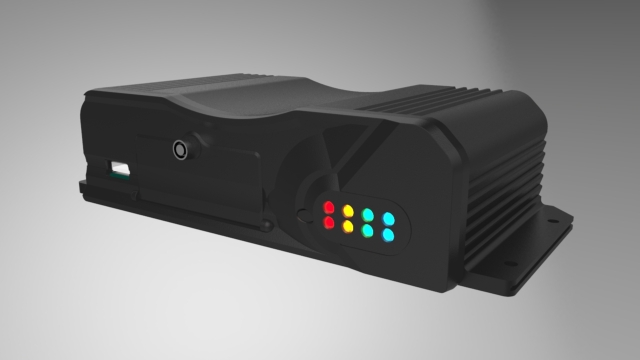

AHD/960H 4路車用DVR

AHD/960H 4路車用DVR

Hot
產品型號:
DV-3604
原產地:
台灣
材質:
鋁合金
顏色:
黑色

詳細規格及用途描述

Resolution: 4CH AHD (Analog high defintion)
Record mode: Full record / Parking record
Jpeg capture: 720p / 960H / D1 jpg
*Playback
4CH 720p @15fps
4CH 720p @30fps
2CH 720p @20fps + 2CH 960 @30fps
*Search mode: time index / time direct / Event
*Networking Streaming
*Ethernet: RD45 giga x1 (static / DHCP)
*Optional: 3G/ 4G / Wifi
*Video input: BNC x 4 for AHD or SD
*Video output: RCA x 1 / VGA x1 (800x600)
*Audio input x 2 / output x 1
*TPMS: Support (TTL / RS232)
*RS485: Yes (PTZ)
*RS232: Yes (TPMS)
*Support: RTSP / Alarm speech / TPMS(TTL/RS232) / Car speeding pulse in / Car Voltage Detect
*PTZ Pelco - P / D
*Boot delay: 0 ~ 10 sec
*Power Control Camera Power bypass control
*Power in: DC9 ~ 36V
*Power output: DC 12V
*Operation Temperature: -30°C - +80°C
*Software:
PC playback viewer/ VMS remote server-viewer / Smart phone APP iOS-Android
