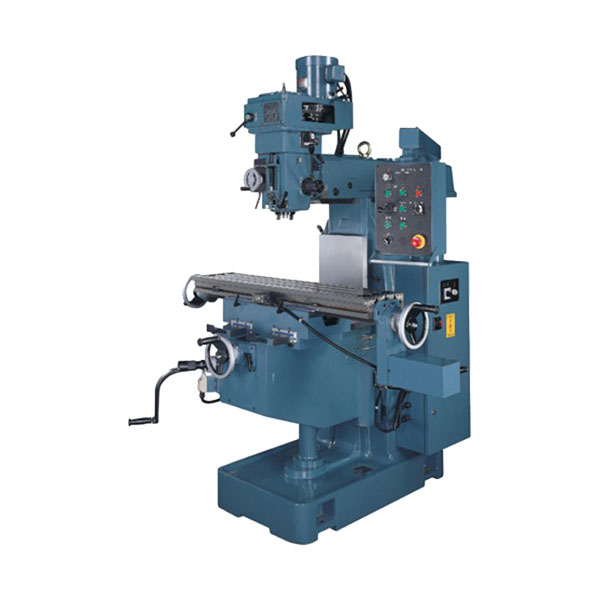

Heavy Duty Vertical Mill

Heavy Duty Vertical Mill

Hot
產品型號:
MW0800-045
原產地:
台灣
材質:
To be advised
顏色:
Final detail to be provided on formal quotation sheet

詳細規格及用途描述

Features

Maximum Table Load: 350-400 kgs
X, Y axes ball screw
Hardened & ground table with T-slot

Description

Milling Machine of A model: with Step Speed Head; B model: Variable Speed Head
Rigid structure, made of meehanite cast iron
High quality to perform easily

Specification




ITEMS
MW0800-045A
MW0800-045B


TABLE
Size
1200x 280 (1270x 370 OPT.)


T SLOT (WxNO.xPITCH)
16x 3x 65 (18x 3x 80 OPT.)


TRAVEL
XxYxZ
700x 360x 360 (900x 360x 360 OPT.)


FEED
X,Y
MANUAL


Z RAPID/MIN.
1150


X,Y/MIN.
VAR. 0-1800 (OPT.)


SPINDLE
SPINDLE NOSE
NO. 40


STEPS
16
VARIABLE


SPINDLE SPEED RPM
75-3600
80-3800


SWIVELLING ANGLE
45° (L&R)


QUILL TRAVEL
140


QUILL FEEDS/REV.
0.035/0.07/0.14


SPINDLE NOSE TO TABLE
0-500


SPINDLE CENTER TO COLUMN
185-635


CROSS TRAVEL OF RAM
450


MOTOR
VERTICAL SPINDLE
3HP-2P/4P
5HP-4P


X,Y FEED
DC SERVO 400W (OPT.)


RAPID VERTICAL
1HP-12P


COOLANT PUMP
1/8HP-2P (OPT.)


SIZE
MACHINE (LxWxH)
1710x 1560x 2285


NET WEIGHT (KGS)
1900




Standard Accessories:

Table hardened and ground
T slot edge ground
X,Y axis ball screw C5 class
X,Y axis turcite b slide way
Vertical head auto lub. Pump
Auto slide way lub. Pump
Table elevating motor

Optional Accessories:

Coolant equip. with chip tray
X,Y Axis DC Servo Motor
X Axis travel in 900mm
Y Axis travel in 500mm

The product pictures are for your reference only: final spec & accessories based on formal quotation

Heavy Duty Vertical Mill
