46件組拔卸器組合

46件組拔卸器組合

Hot
產品型號:
HBP-46(G-05)
原產地:
台灣

詳細規格及用途描述

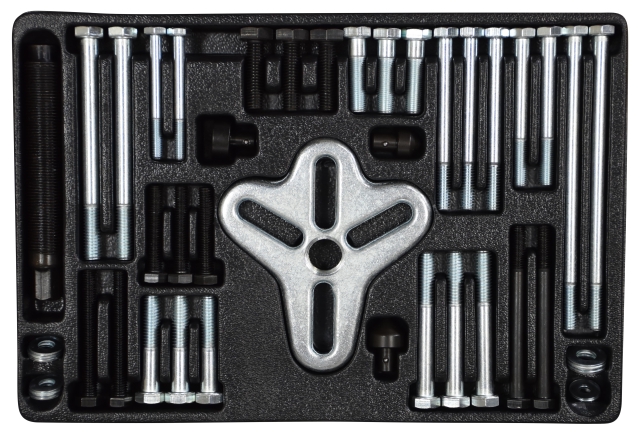

46PCS HARMONIC BALANCER MASTER PULLER SET

◆DESCRIPTION
● COMPREHENSIVE MULTI-PURPOSE PULLER SET DESIGNED FOR THE REMOVAL OF
HARMONIC BALANCERS, TIMING GEARS AND PULLEYS ,CRANK SHAFT PULLEYS AND
STEERING WHEELS AND FLYWHEELS, WHERE ACCESS TO 2 OR 3 TAPPED HOLES IS A
VAILABLE
● DROP FORGED 4 SLOT FLANGE WITH A RANGE OF CAPPED BOLTS
● COMPREHENSIVE SET WITH UNIVERSAL APPLICATIONAS
● SUITABLE FOR MOST COMMON MAKE AND MODES AND MODELS
● 46 PIECE SET SUPPLIED IN PLASTIC STORAGE TRAY210L X 310W X 25H (MM).
◆PACK CONTENTS:
● 1-OKE
● 1-CENTRE BOLT 3/4" X 5”
● 1-SMALL CENTERING ADAPTOR
● 1-LARGE CENTERING ADAPTOR
● 1-FLAT SHAFT ADAPTOR
◆WASHERS
● 3 X 3/8" (10MM)
● 6 X 5/16" (8MM)
● 2 X 1/4"
◆BOLTS
● 2-1/4" X 2-1/2" - 28NF
● 2-3/8" X 4-1/2" - 16NC
● 3-3/8" X 3" - 16NC
● 3-3/8" X 2" - 16NC
● 3-3/8" X 1-1/2" - 24NF
● 2-5/16" X 6" -18NC
● 3-5/16" X 3-1/2" - 18NC
● 2-5/16" X 3" - 24NF
● 2-M8 X 90MM - 1.25P
● 2-M8 X 65MM - 1.25P
● 3-M8 X 45MM - 1.25P
● 3-M10 X 35MM - 1.5P
