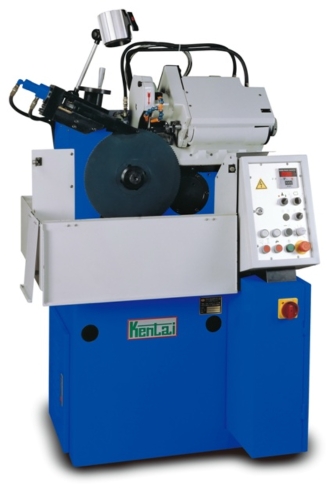

CBN Automatic Chamfering Machine
- 產品型號:
- KSC-600
- 原產地:
- 台灣
詳細規格及用途描述
MODEL: KSC-600
Saw blade diameter: 80 ~ 600 mm
Wheel diameter: 200 mm
Wheel inner diameter: 32 mm
Bevel angle of chamfering: 45 ° , 30 °
Back rake angle: 15 ~ 60 teeth / min
Wheel rotating speed: 3000 rpm
Total electric power: 3 kw
Gross weight: 700 kgs
Dimension (W x H x D): 103 x 158 x 110 cm
* The specifications subject to change without prior notice.
