Price Checker / Scan Kiosk

Price Checker / Scan Kiosk

產品型號:
SK50

詳細規格及用途描述

Descriptions

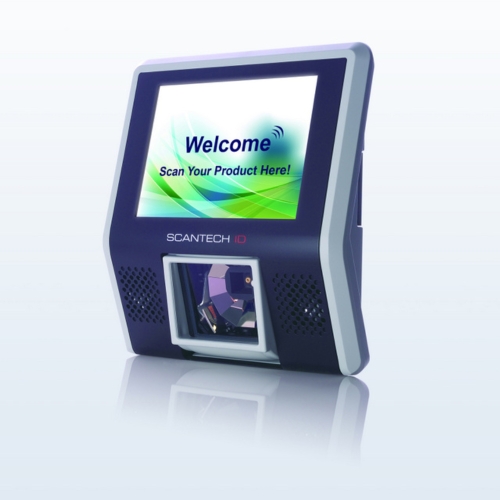

SK50 Self-service SCAN KIOSK with touch screen and media display function, designed to help retailer increase their business, reduce the operation cost and improve customer shopping experience.
SK50 provide customers self-service applications, such as price check, sample music listening and watch the promotion video, with user friendly interface and rotatable scan window provides easy to operate and help customer to make purchase decision more easily and faster.
SK 50 Expandable ability can easily build on by adding third-party USB/RS-232/GPIO peripherals, including printers, keyboards, Entry/Exit-Gate control function, optional RFID reader or magnetic stripe readers feature to support gift card balance, check membership card points and use personal discount coupons.SK50 allows shoppers to retrieve the required information without seeking the assistance of staff to make more informed purchase decisions.
Powerful management tool built in embedded web server for simple access , remotely configure, diagnose, monitor and troubleshoot device, SK50 also provides developer SDK Software Suite, supports with example source code. SK50 will continuously help retailer with advance technology and stay ahead of the retail industry.


Specifications

System Architecture
◎ Processer Super RISC Processor 400MHz
◎ Operating Platform Linux 2.6 Kernel or WinCE 6.0
◎ Memory Flash 256MB expandable with USB flash drive and SD card
◎ Memory RAM 128MB
◎ Power supply voltage DC 12V± 10% / 1.5A
◎ Dimensions (WxHxL) 193 x 176 x 85mm
◎ Weight 900g

Output Media
◎ Display Size 5.7” diagonal
◎ Brightness 400 nits
◎ Resolution 640 x 480 pixels (65,535 colours)
◎ Touch Screen Resistive type
◎ Graphics Supported PNG, JPEG, GIF, BMP
◎ Audio Supported WAV, WMA, MP3
◎ Video Supported MPEG-4, H.264
◎ Audio Ports High Definition Stereo (16-bit PCM 44.1 KHz)
◎ Speakers High Quality loudspeakers for superior audio performance
◎ Headphone 3.5 mm standard jack

Data Ports
◎ SD Card Slot 1
◎ USB 2.0 2 (back compartment) & 2 (side compartment)
◎ LAN port 10/100 Mb 1
◎ RS232 1 (+5V DC Power)
◎ Power Over Ethernet Module IEEE 802.3af Optional
◎ Entry/Exit Gate control function Optional (2-pin conn)

Network Interface
◎ Wired LAN Ethernet: 100MB Base-TX/10MB Base-T (802.3)standard on board,Two network LED indicators in the LAN connector
◎ Wireless LAN 802.11 B/G/N 2.4 GHz(Optional)
◎ Encryption protocols WPA, PSK and WPA Enterprise security

Data Inputs
◎ Scanner possibilities 1D Omni Directional Laser Scanner / 2D Imager Selectable
◎ Symbologies Supported Omni Directional Laser Scanner (1D) or 2D Imager (1D and 2D)
◎ Scanner adjustable The Scanner can be adjusted over an angle of 42°and locked with step of 6°
◎ Software and Applications
◎ Application Price Check Application, Built-in web configuration, management and remote package upgrade
◎ Color available Gray / Red

Environmental
◎ Operating temperature 0° ~ 40°C (32° ~ 104°F)
◎ Storage temperature -20° ~ 60°C (-4° ~ 140°F)
◎ Humidity 5% ~ 95% RH (non-condensing)
