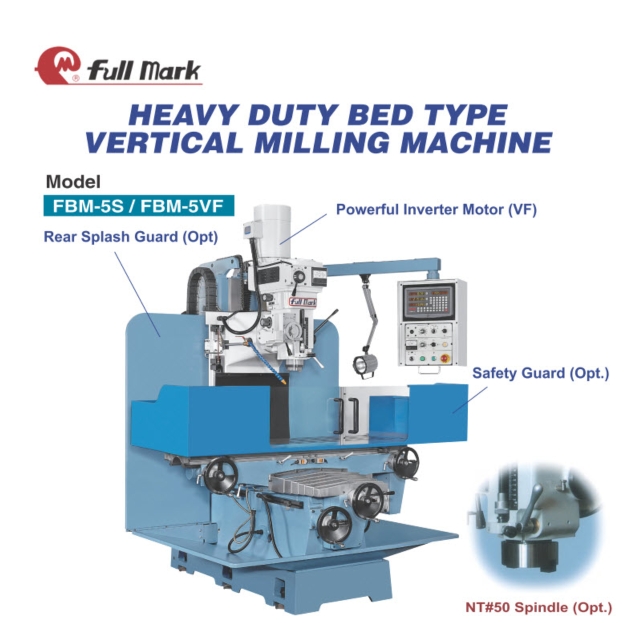

Heavy duty Bed type Vertical Milling Machine

Heavy duty Bed type Vertical Milling Machine

Hot
產品型號:
FBM-3S/VF ; FBM-4S/VF ; FBM-5S/VF
原產地:
台灣

詳細規格及用途描述

FEATURES :
◆ Spindle of SCM-21 alloy steel & precision ground, with class P4 bearings to ensure best accuracy on high speed running.
◆ Casting made of high FC-30 high for extra rigidity.
◆ Variable speed Head of FBM-3VF , FBM-4VF & FBM-5VF are driven by inverter control.
◆ Spindle AC 5HP motor of FBM-5VF with Magnetic Brake, it may stop running at the twinkling.
◆ Milling head with balance weight for smooth elevating movement.
◆ Bed & column as box type, long square sliding ways, & wider base for turning stability.
◆ Square slide way have been ultra-frequency treated & ground, XYZ axes with Turcite-B.
◆ XYZ axes with ball screw to smooth in precision cutting.
◆ XYZ axes with brake motor rapid feeding, controlled by inverter, for automatic & vari speed with high accuracy position.
◆ All sliding way with automatic lubrication

Standard Accessories :
◆ Front Steel Cover of Y axis
◆ Coolant System
◆ Automatic Lubricator System
◆ Work Lamp
◆ Draw Bar
◆ X,Y,Z Ball Screw
◆ Tools & Tool Box
◆ Z axis brake cylinder (5S/5VF only)
◆ Spindle 2P/4P motor (16 steps) (5S)

Heavy duty Bed type Vertical Milling Machine
