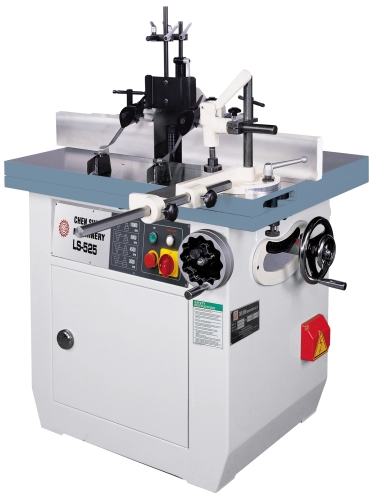

轴倾斜立轴机附滑台

轴倾斜立轴机附滑台

产品型号:
LS-525TS

详细规格及用途描述

*Spindle Dia. : 3/4", 1", 1-1/4" , 30mm (Choice Of One Spindle Size)
*Spindle Speed:3000/4500/7500/10000 R.P.M..
*Taper Of Spindle:Mk5
*Spindle Motor:5 Hp/3ph(7.5hp Opt.)
*Spindle Travel:130mm(5")
*Spindle Capacity Under Nut:3-1/4", 3-3/4", 4-1/2"(3/4", 1", 1-1/4" Spindle)
*Tilting Angle:-5 ~ 90 ~ +45 Degree
*Max. Table Insert Diameter:220mm(8-5/8")
*Table Size:700 X 900mm(27-1/2" X 35-1/2")
*Sliding Table Size:900 X 230mm(35-1/2" X 9")
*Sliding Table Travel:830mm(32-1/2")
*Fence Size:125 X 900mm(4-15/16" X 35-1/2)
