Origin : Taiwan

Product Specifications/Features :

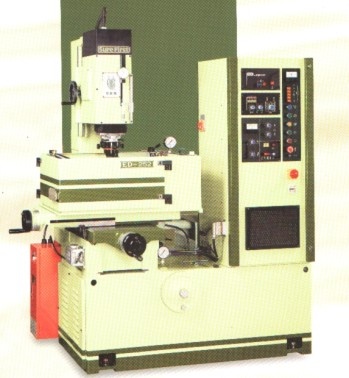

1. E.D.M. Electric Discharge Machine

2. Machine specification

. Work table area (L x W): 600 x 300 mm

. Travel (X.Y Axes): 300 x 200 mm

. Quill stroke: 150 mm

. Type of servo motor: DC servo motor

. Distance between working table and

electrode hojder plate: 150-500 mm

. Max.workpiece dimensions (W x D x H): 600 x 300 x 240 mm

3. Accurcy and power supplies

. Max. working speed + Cu:St: 2.01 g/min

. Max. working speed + Gr:St: 2.69 g/min

. Best surface roughness: RA0.3-0.5 RMS14-21

RA0. 2-0.3 RMS8-14

. Min. electrode wear rate: 0.2 %

. Max. process current: 30 (50, 70) A

. Max. power consumption: 4 (6, 9) KVA

. Power supply dimensions: 540 x 470 x 1220 mm

4. Dielectric fluid tank

. Tank dimensions: 1400 x 700 x 500 mm

. Pump flow: 80

. Pump motor: 0.375 kw

. Volume of dielectric fluid: 330 (87)

Primary Competitive Advantages:

. Well and High Quality Control

. ODM Accepted

. OEM Accepted
