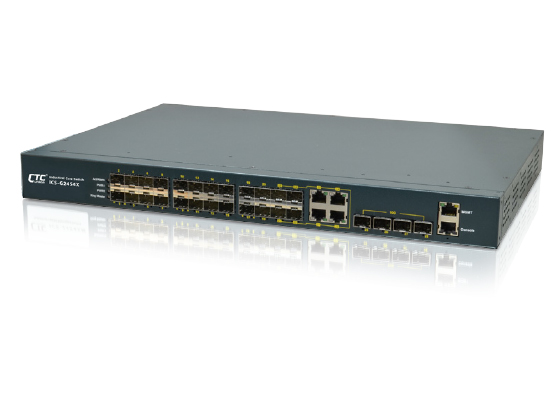

Industrial Core Switch - ICS-G24S4X

Industrial Core Switch - ICS-G24S4X

产品型号:
ICS-G24S4X
原产地:
台湾

详细规格及用途描述

Description

ICS-G24S4X is a industrial grade Ethernet Core Switch that is equipped with 20 gigabit SFP ports plus 4 combo gigabit ports and 4 10G SFP+ ports. This model is fan-less designs with redundant, isolated power supplies (2 AC, 2 DC, AC + DC) and can be mounted in 19 inch EIA standard rack. It offers various layer 2 Ethernet functions (IGMP, VLAN, QoS, ACL, Security, IPv6, bandwidth control, and port mirroring) and also supports μ-Ring redundancy protocol that can establish 14 independent rings for flexible applications, especially when employed in backbone infrastructure. ICS switch can also be managed centrally and conveniently by CTC Union’s SmartView™ Element Management System and mass configured by SmartConfig™.

Housed in rugged rack mountable enclosures, it is certified with many industrial-grade standards and is ideal for deployments in harsh environments to deliver mission-critical network services. Additionally, with high port density and Gigabit or 10 Gigabit high-speed uplink, ICS-G24S4X is a reliable and scalable solution for core layer or backbone applications (See figure 1 & 2).


Features

▪ 24x 100/1000Base-X SFP with 4x Combo (SFP+RJ-45) and 4x 10G Base-X SFP+
▪ Redundancy isolated low voltage 24/48VDC, or/and isolated High voltage AC/DC (110/220 VAC/VDC) power inputs
▪ Supports negative voltage power input with isolated RS-232 console port (for example in telecom system)
▪ Rugged metal, IP30 protection & Fanless design
▪ UL60950-1, CE, FCC, Rail Traffic EN50121-4 certified
▪ Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
▪ STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
▪ Provides 14 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 14 rings in one device
(Please see CTC Union μ-Ring white paper for more details and more topology application)
▪ μ-Ring for Redundant Cabling, recovery time<50ms in 250 devices
▪ DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
▪ QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
▪ IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
▪ Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
▪ IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
▪ Flexibility security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
▪ Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
▪ Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
▪ RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
▪ Supports IPv6 Telnet server /ICMP v6
▪ CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
▪ Provides SmartConfig for quick and easy mass configuration (Please see Catalog chapter 1- Software Management for more details)
▪ Supports SmartView for Centralized Management (Please see Catalog chapter 1- Software Management for more details)
▪ Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 device (Please see Catalog chapter 1- Software Management for more details)
