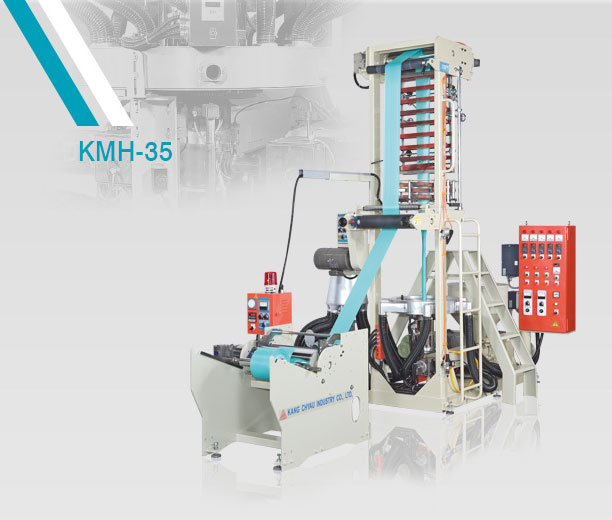

HDPE HIGH SPEED PLASTIC INFLATION MACHINE

HDPE HIGH SPEED PLASTIC INFLATION MACHINE

Model:

KMH-35

Detail Specifications / Descriptions
MODEL KMH-35
KMH-35
SUITABLE MATERIAL HDPE
HDPE
FILM THICKNESS 0.008-0.10 mm
0.008-0.10 mm
FILM WIDTH RANGE 400 mm
400 mm
FILM OUTPUT 10-28 kgs/hr
10-28 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø 35mm
Ø 35mm
SCREW L/D RATIO 26:1
26:1
HEATING CAPACITY 5.7 kw
5.7 kw
AUTO THERMO CONTROL 3 zone
3 zone
BARREL COOLING FAN 1/8 HP×1
1/8 HP×1
DRIVING MOTOR AC 15 HP + Inverter
AC 15 HP + Inverter
DIE UNIT
DIE DIAMETER Ø50/80 mm
Ø50/80 mm
AIR RING DIAMETER Ø120 mm
Ø120 mm
HEATING CAPACITY 4.6 kw
4.6 kw
AUTO THERMO CONTROL 1 zone
1 zone
COOLING BLOWER 3 HP
3 HP
TAKE-UP UNIT
TAKE-UP ROLLER 500 mm
500 mm
EFFECTIVE WIDTH 400 mm
400 mm
TAKE-UP MOTOR AC 1/2 HP
AC 1/2 HP
TAKE-UP SPEED 85 m/min
85 m/min
ELEVATING MOTOR
WINDING UNIT
ROLLER WIDTH 500 mm
500 mm
WINDING WIDTH 400 mm
400 mm
WINDING MOTOR DC 1/2 HP
DC 1/2 HP
MACHINE DIMENSION 350×260×310 cm
350×260×310 cm
* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
