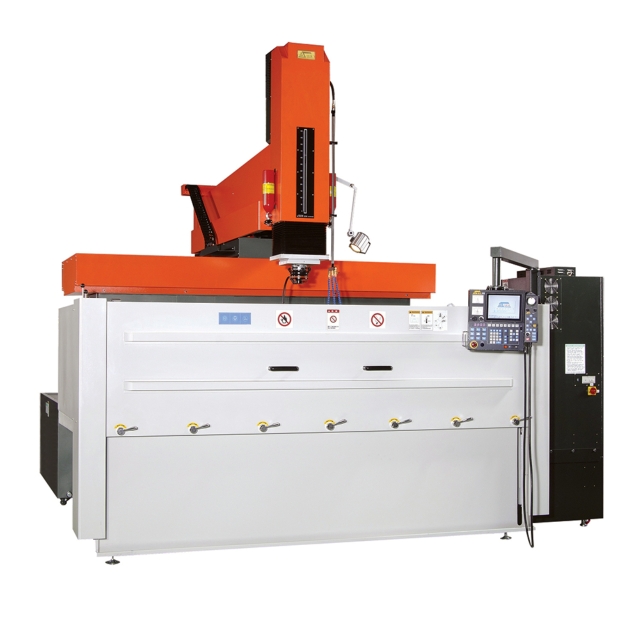

Sliding Single-column EDM

Sliding Single-column EDM

Model:

M2010~M3010

Detail Specifications / Descriptions
‧The X. Y& Z axis utilizes AC servo motor.
‧Multi-cavities machining, ORBIT-CUT machining & Helix machining.
‧A.T.C. (Automatic Tool change) & C-axis machining available.
‧The Circle Angle of Sparking is lower than 0.02mm.
‧The best surface roughness (Ra) is better than 0.1 µm.
‧Multi-side ORBIT-CUT machining for X, Y & Z axis
‧High speed and long distance jumping.
‧Special Rib shape machining function.

Specification M2010
X, Y-Travel 2000 x1000 mm
Z-Travel 600 mm
Table Dimension 2250 x 1100 mm
Work Tank Dimension 2510 x 1620 x 650 mm
Max. Table-Quill Distance 660~1260 mm
Max. Electrode Weight 300 kgs
Max. Table Loading 12000 kgs
Dielectric Tank Capacity 3800 Litre
Filters 8 pcs
Machine Weight 12600 kgs
Machine Height 3680 mm
Nominal Current 60A / 5A, 90A / 5A, 120A / 5A
Input Voltage 220 / 380 / 415 / 440V
Connected Rating 7KVA / 10KVA / 13KVA
Max. Stock Removal Rate 400 / 600 / 800mm³/min
Best Surface Roughness Ra ≦ 0.1μm
Best Electrode Wear Rate < 0.2% ( specific equip.< 0.1%)
Standard accessories Additional Equipment
Precision Electrode Clamps ATC (Auto Tool Change)
Piezoelectric Light C-Axis
Work Fastening Tool Kit "EROWA" Chuck-Swiss
Magnetic Induction Oil Nozzle Base 3R System Chuck-Swedish
Operation Manuals Di-Electric Cooler
M.F.D (Fine Mirror Finish) Electric Oil
X, Y, Z Axis Linear Scales (1μm) Permanent Magnetic Chuck
  Automatic Fire Extinguisher
Charge Coupled Device (CCD)
․ Networking monitoring CNC machine (option)

M2010
M2010 Ground Area
M2210
M2210 Ground Area

M3010 Ground Area
