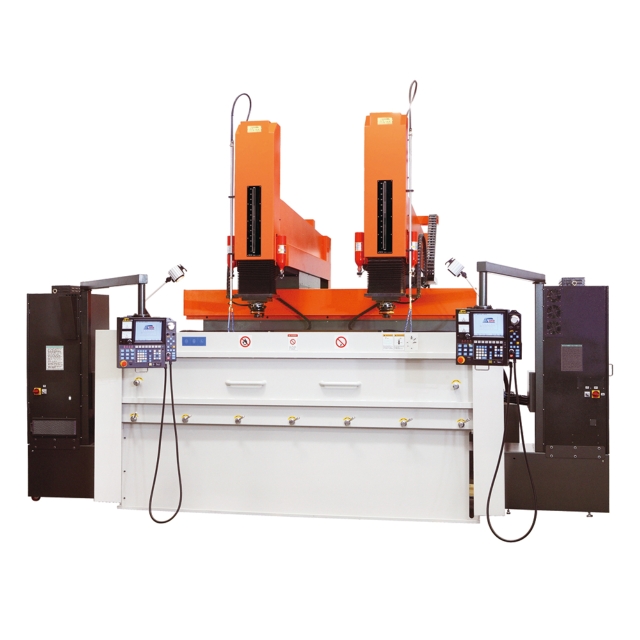

Sliding Double-column EDM (Ram type)

Sliding Double-column EDM (Ram type)

Model:
M2210-2H

Detail Specifications / Descriptions

‧The X. Y& Z axes utilize AC servo motors.
‧Multi-cavities machining, ORBIT-CUT machining & Helix machining.
‧A.T.C. (Automatic Tool change) & C-axis machining available.
‧The Circle Angle of Sparking is lower than 0.02mm.
‧The best surface roughness (Ra) is better than 0.1 µm.
‧Multi-side ORBIT-CUT machining for X, Y & Z axis
‧High speed and long distance jumping.
‧Special rib shape machining function.


Specification M2210-2H
X,Y-travel單動 1600 x 1000 mm
雙動 800 x 1000 mm
Z-travel600 mm
Table dimension2250 x 1100 mm
Work table dimension2820x1620x650 mm
Maximum table-quill distance1350 mm
Maximum electrode weight300 kgs
Maximum table loading13000 kgs
Dielectric tank capacity4600 Liter
Filters12 pcs
Machine weight15100 kgs
Machine Height3680 mm
Nominal Current90A/5A.120A/5A.150A/5A.180A/5A.240A/5A.300A/5A
lnput voltage220 / 380 / 415 / 440 V
Connected rating20KVA / 26KVA / 34KVA
Maximum stock removal rate600/800/1000/1200/1600/2000 mm3/min
Bst surface roughnessRa≤0.1μm
Best electrode wearing rate<0.2% (specific equip<0.1%)
