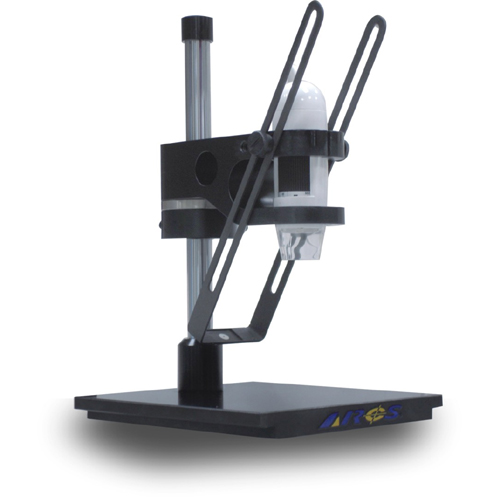

Portable Non-Contact Video Measuring System
- Model:
- PIS-1516
- Country of Origin:
- Taiwan
- Color:
- Black
Detail Specifications / Descriptions
Technology Features of PIS-1516
* Easy installation, good for on-line and simple measurement (It could also connect to the notebook)
* Enlarge the part of the working piece for inspection the surface
* Scan the shape of the working piece, dimension remark and complete report
* Video system: 0.3M Web Cam / Resolution 640x480
* Magnification: 5x~135x zoom lens
* Illumination: LED reflection illumination
* Repeatability: 0.05 mm
* Visible scope: 3x2 mm ~ 50x40 mm
* Built-in measuring software: SV-1000
* Base: SS400 rolled steel
* Column of Z-axis: High Carbon-Chromium Bearing Steel
* Interface: USB 2.0
* Base for calibration: U type shaft construction
* Including the Calibration Kit, Aluminum suitcase, USB with software
