Four Color Pad Printing Machine

Four Color Pad Printing Machine

Model:

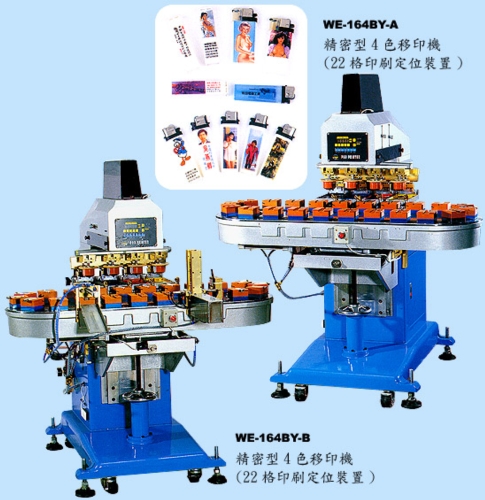

WE-164BY-A / WE-164BY-B

Detail Specifications / Descriptions

* Applications:
o Suitable for telephone and mobile phone's key pad, household electric appliance and sporting goods.
* Model : WE-164BY-A
o Color : 4
o Max Printing Plate : 110 x 140 (mm)
o Output / Hour : 600 ~ 1,200
o Dimension (L x W x H) : 1,500 x 1,300 x 1,650 (mm)
o Net WT : 400 kg
* Model : WE-164BY-B
o Color : 4
o Max Printing Plate : 110 x 140 (mm)
o Output / Hour : 600 ~ 1,200
o Dimension (L x W x H) : 1,500 x 1,650 x 1,650 (mm)
o Net WT : 420 kg

Features:

* With microprocessor controlled and auto "DEFAULT" system, easy to operate and maintenance.
* An advanced and unique four times "PAUSE" function for better printing quality has been designed to enable users who may stop or continue the operation, as wish, any time in process of printing.
* A durable and trouble free both Germany made "BOSCH" and Japan made "SMC" quality pneumatic components and bearing have been adopted and used on the machine.
* A detachable ink tray and adjustable Dr. blade are used on the machine of which these two separate unit can be adjusted respectively as per different applications, as wish, if required.
* An individual air cylinder is used on rotary conveyor for precise positioning.
* With a 22 station conveyor system design is easy to be linked with other automation, if required.
* Custom-made machine is available and welcome.
