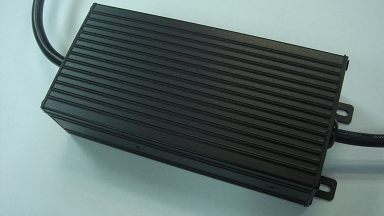

LDP070 70W LED Driver

LDP070 70W LED Driver

Hot
Model:
LDP070
Country of Origin:
Taiwan

Detail Specifications / Descriptions

ELECTRICAL SPECIFICATIONS :
INPUT
Input voltage : 100-240Vac
Input frequency : 47 - 63 Hz
Input current : 0.9Arms max.
Efficiency : 86~89% typical at full load
Total harmonic distortion : 20% max.
Power Factor : 90% min. at full load
OUTPUT
Output rating : as rating charts
Line regulation : 1%
Load regulation : 5%
Constant current Tolerance : 5%
Ripple & noise Vp-p : 1%(CV) 10%(CC) max.
Hold up time : 10mS Min. at full load 115Vac
Output power : 70W max.
PROTECTION :
Over voltage protection : Auto recovery
Short circuit & overpower protection : Built-in
Over temperature protection : 125 deg.C, latch
FEATURES
Alumimum case or black anodized
Optional 1-10V dimming
Optional CV or CC output
Optional IP65 rated for outdoor application
ENVIRONMENT
Operating : full load -20-50℃ convection
Non-operating : -20-85℃
Shock : MIL-STD-610C 516 Part V
Vibration : 10-500 Hz. 16 mins/cycle/axis
DIMENSION : 125x61x35mm

ITEM Model No. Output Io max.
1 LDP070-12A-BC 7-12V 5.60A
2 LDP070-18A-BC 12~18V 3.90A
3 LDP070-24A-BC 15~24V 2.92A
4 LDP070-30A-BC 21~30V 2.33A
5 LDP070-36A-BC 25~36V 1.94A
6 LDP070-42A-BC 30~42V 1.67A
7 LDP070-48A-BC 39~48V 1.46A
8 LDP070-54A-BC 39~54V 1.30A
Remark : Io can be set below the max.
MODEL SELECTION GUIDE:
A : 0=Constant current CC output
1=Constant voltage CV output
2=1-10V dimmable
B : 0=non-IP construction
1=IP65 outdoor rated
C : 0=Black anodized aluminum case
1=Pure aluminum color case
2=Open Frame U-type aluminum base
EMC Standards
FCC part 15 Class B
CISPR 15 Class B
CE EN 55015, EN61547
EN61000-3-2, EN61000-3-3
IEC 61000-4 Series
Safety Standards
UL : UL1310 class 1
cUL:CAN/CSA C22.2 NO. 223-M91
CE : EN61347-1, EN61347-2-13, EN62384
