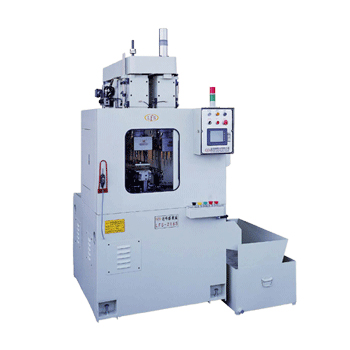

2-Spindle 16 holds slide type drilling & Tapping Machine

2-Spindle 16 holds slide type drilling & Tapping Machine

Model:
LFS-216S

Detail Specifications / Descriptions

Function :
1. 1st spindle drilling , motor:3HPx4P
2. 2nd spindle tapping , motor:2HPx8P
3. Spindle outside diameter 110, Max stroke 150mm
4. The spindle is assembled with fixed 16-axis multi-spindle, which can process with 16 holes at a time
5. Auto parts processing , Material: Stainless steel
6. Human machine interface(HMI), as optional equipment

Specification :
1. Electric system PLC
2. Hydraulic pump motor:2HPx4P single pump=1set
3. Cutting fluld setting: water pump motor 1/2HP, tank capacity 200 liter
4. Total horse power:8HP
5. Machine size: L1300xW1300xH2400(mm)
6. Total weight:3000KG

2-Spindle 16 holds slide type drilling & Tapping Machine
