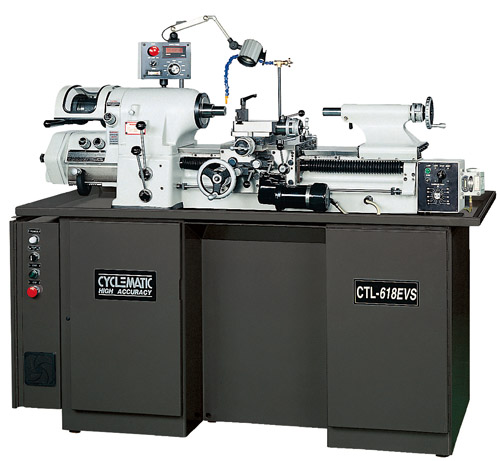

Toolroom Lathe

Toolroom Lathe

Model:
CTL-618EVS
Country of Origin:
Taiwan

Detail Specifications / Descriptions

·280mm (11") Swing over bed.
·457mm (18") Distance between centers.
·Dual range Inch/Metric quick change gearbox.
·Infinitely variable spindle speeds from 0-4000 RPM
·Full bearing carriage with Turcite-B slideway bearing material between carriage and bed.
·The spindle is mounted in high precision preloaded angular contact ball bearings eliminating radial and end play.
·Fast lever collet chucking with a single movement.
·Independent infinitely variable feeds produce accurate cuts with efficient chip removal, and smooth surface finish.
·Quick change gear box for easy precision threading.
·Automatic thread length control with fine adjustable stops provides for accurate threading without thread relief.
·Quick-action tool post slide for threading is instantly cleared from the work for a carriage return
