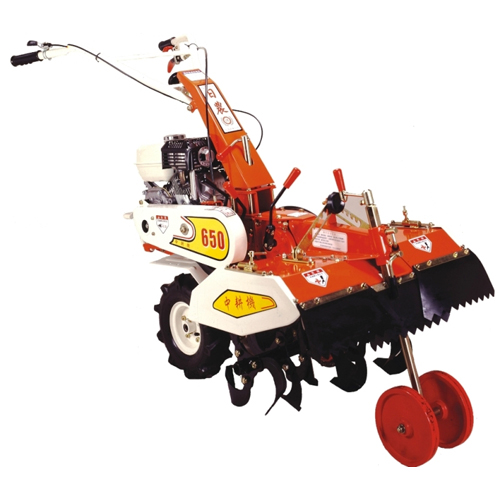

Cultivator (Nichino)

Cultivator (Nichino)

Hot
Model:
650 S-Type
Country of Origin:
Taiwan
Material:
steel tube & steel sheet
Color:
Tangerine Red & white

Detail Specifications / Descriptions

Suitable for banking, furrowing, and U & V shaped tillage
Japanese 4-cycle gasoline engine, oil-type air filter; Mitsubishi 6.3HP (GB180) & Honda 6.5HP (GX200) engines optional
Transmission type: Direct shifting-gear drive for 2-step forward/reverse movement
Belt/tension wheel drive
Speed: Forward: 2.82km/hr (max.); 1.49km/hr (min.); backward: 3.94km/hr (max.); 2.08km/hr (min.)
Cultivating section: Cutter rotation speed (including secondary transmission): 1:486/2:263/3:414/4:224 (rpm)
Track distance adjustment: 18cm (the narrowest) to 36cm (the widest)
Tire spec: 350-5 w/herringbone tire tread
Depth of cultivation: 3-25cm
Width of cultivation: 65cm
Depth of tillage: 3-30cm
Width of tillage: 18, 24, 30, 36, 45 (cm)
Machine spec: L145 x W65 x H85 (cm)
Handle adjustment: 5-step height adjustment
Net weight: 110kg (including 6 rotary cultivating cutters)
