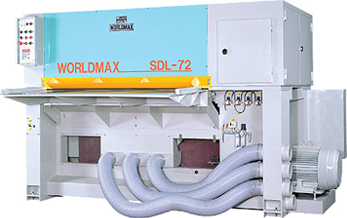

SDL-72 Bottom Head Wide Belt Sander
- Model:
- SDL-72 Bottom Type Wide Belt Sander
Detail Specifications / Descriptions
* Automatic Wide-Belt Surface Sanders
* Sanders
* The feed rollers are transmitted synchronizely by the universal shafts, that upgrading feeding accuracy greatly.
* Individual adjustment of feed rollers provides added accuracy of sanding.
* Variable feed speeds allows for sanding various material of compact panel.
* The sanding belt oscillation track is controlled by photocell sensor.
* An Ampere meter on the control panel accurately indicates percentage of full load on the sanding head.
* Minimum thickness of workpiece is up to 0.4mm.
* High sanding accuracy in ±0.03mm.
* Sanding Width: 72"(Widest: 72")
* Main Motor (Standard): 75HP
* Feeding Motor: 5HP
* Table Hoist Motor: 2HP
* Brushing Roller Motor: 1/4HP
* Feeding Speed (Variable): 14mx48m/min
