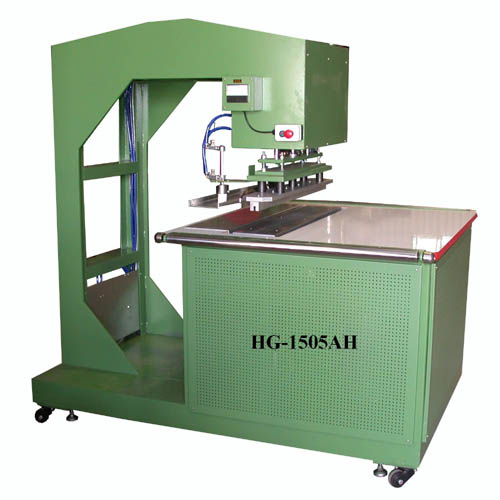

| MODEL : HG-1005 AH HG-1205 AH HG-1505 AH
SPECIFICATIONS
Max H.F. Output Power : 10 KW 12 KW 15 KW
In-put Power : 20 KVA 24 KVA 30 KVA
Power Source : 3ψAC220V/380V/415V 50Hz/60Hz
Oscillation Frequency : 27.12 MHz
Oscillation Tube : TOSHIBA E3069 TOSHIBA E3130 TOSHIBA 8T85RB
Rectifier : Silicon Rectifier
Cooling : Air Forced Cooling
Electric Control : Relay Auto Control, VC Manual Adjustment
ARC Suppressor : Thyratron – NL5557
Upper Platen : 50mmW X 800 mmL 50mmW X1000mmL
Distance Between
Upper & Lower Electrode : 100 mm 125mm |
