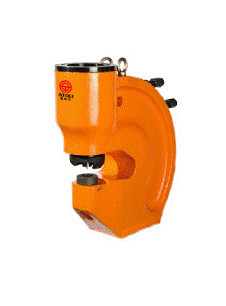

Hydraulic Punching Machine

Specifications of HK2832 Hydraulic Puncher
‧Action Type: Double Action
‧Max. Punching Thickness(at 32mm diameter): For Iron steel28mm, limit up to 30mm, For Stainless steel 14mm
‧Max. Punch Diameter: 32mm, limit up to 33mm
‧Max. Oblong Size(width, diameterxlength): 24Dx32Lmm, limit up to 33mm of length
‧Max. Throat Depth (Reach): 150mm
‧Max. Strength Output(at 750 kg/cm2): 120 ton
‧Max. Operating Pressure(zero to peak in atmosphere): 750kg/cm2
‧Body Weight: 148kg
‧Body Dimension: 50x18x55cm
‧Punching Time: Combine with pump BLK5T7A, approx 4~8 sec.
‧Operation Method: Step by foot Switch/Push Button
‧Combine with Pump BLK5T7A

Detail Dimensions:
‧A: 30mm
‧B: 32mm
‧C: 150mm
‧D: 115mm
‧E: 120mm
‧F: M14 Screw

Feature:
‧Stainless available.
‧Supply round and oblong.
‧Auto-return including.
