Product Information - Full Automatic-Portable Magnetic Cutting Unit
|
Click for a larger picture

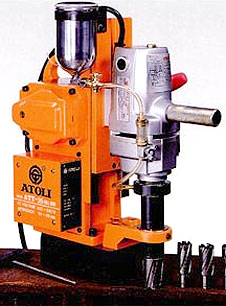

Full Automatic-Portable Magnetic Cutting Unit
|
| Product Description |
| Product Name: |
Full Automatic-Portable Magnetic Cutting Unit |
| Model: |
ATT-35 |
| Country of Origin: |
Taiwan |
|
| > Detail Specifications / Descriptions |
Fully Auto Function Design.
‧With 3-step speed-change feed. needless to be operated by manual and able to reduce the wearing rate for blade.
‧Slow Start System.
‧The slow start mechanism is designed to cope with cutting hard oxidized surfaces of rolled steel materials. The electric drill is advanced slowly during the first few seconds of cutting.
‧Automatic Feed System.
‧The automatic feed system allows perfect holes to be cut without the need for expertise. The rate of feed is controlled automatically according to the cutting load and cutter sizes.
‧Automatic Return System.
‧The automatic return system allows the next hole to be worked immediately. When the hole is completed, the electric drill lifts up speedily then stops.
‧Cartridge Type Oil Tank System.
‧Use of stainless steel oil cup with big capacity, never be broken off, single point oil tank convenient design for replacement, and even oiling in the middle way, the drilling operation is still unable to be stopped.
‧Solidly Designed For Out-Standing Durability.
‧Designed with the greatest possible consideration for lastig quality, it is provuded with a switch knob protector, an oil dropper inside the electric drill, and the feed motor is fully enclosed within the body of the machine.
‧According to customer demand manufacture.
Specifications:
‧Power source(Sinde phase): 220V-240V 50/60HZ
‧Hole capacity: 14mm thru 35mm
‧Magnet holding power: 800kg
‧Magnet power consumption: 44W
‧Magnet dimensions: 175x95x46mm
‧Mixmum stroke: 80mm
‧Weight: 21kg
‧Cabtyre cable: 3M
Drill Motor:
‧Rated power consumption: 680W
‧Rated ampere: 6A, 5A
‧Total height: 315mm
‧No-load speed: 650 rpm |
|
