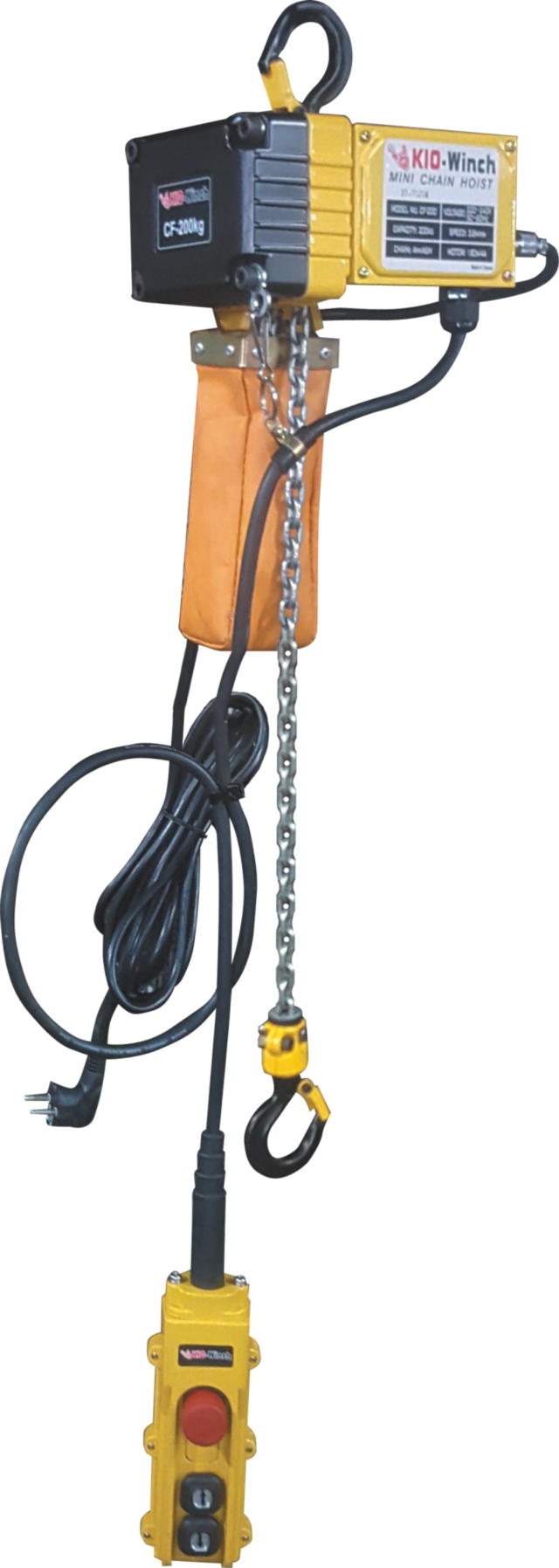

Mini Chain Hoist CF-200

Mini Chain Hoist CF-200

Model:
Mini Chain Hoist CF-200
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Product Introduction



Braking: Dual braking system combines mechanical plus regenerative braking, provides instant and safe braking.



Housing: Lightweight, cast aluminum alloy

Friction clutch: A high performance and durability friction clutch that is integrated with the load brake. This design is to slip in order to prevent overloading and over travel the could damage the hoist.



Chain:Designed and manufactured by FEC, Japan, grade 80 alloy steel with resistance and long life service.



Loading sheave: Provide smooth lifting, reduce vibration and wear.



Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.



Chain bag: The vinyl chain bag container is provided standard with hoist.



Switch: Simply layout of the control with 3M power cable as standard and Emergency stop as option.



Usage:

Fit for various workplace applications, such as general factories, warehouse construction, plumbing, and agriculture industries.

Designed for unique rigging applications encountered at small venues, lightweight, quiet ,and portable. Operates on 110V or 220V, which means you can plug it in just about anywhere.



Gear box/Oil Lubrication:

Special clutch box-automatically switch to dry-run for over load(Exceeding maximum or minimal limit) and stop the up and down operation.



Rated load (kg) 200 Horsepower (W) 180
Short-time rating(min) 25 Percentage duty cycle (%ED) 30
Max, Usable frequency (cycle/h) 180 Power(V) Single Phase 110V
Rated current (A) 4 Lifting speed (m/min) 3.8
Standard lifting height (m) 5 Min. distance between hooks (mm) 280
Power cord length (m)) 1.25mm2×3C×3m Chain size (mm) φ4×12
Controller length (m) 1.25mm2×5C×5m Weight (kg) 8.1
