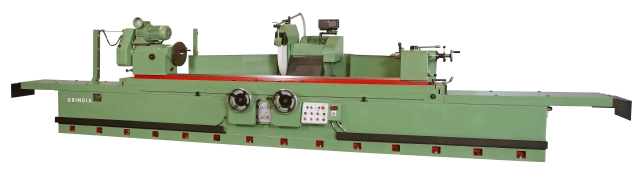

Hydraulic Universal Cylindrical Grinder
|
| Product Description |
| Product Name: |
Hydraulic Universal Cylindrical Grinder
|
| Country of Origin: |
Taiwan |
| Model: |
UH-500/2000,2500,3000,4000 |
|
Features:
* Apply for grinding of the straight faced rolls, large machinery columns, car axles, printing cylinders, large motor amatures and other work of same nature.
* Heavy bed are subtantially ribbed provides a rigid base to carry all units and possesses great stiffness. Sufficient slideway length to support the table in all position.
* Sloping table top allows the workhead and tailstock to be moved laterally without losing alignment.
* Hydraulic wheel head control with quick approach and return.
* Wheel head spindle are pressure lubricated and a pressure switch is electrically inter locked with wheel motor.
* Hydraulic table traverse has end dwelling at both end of stroke and equipped with independent stepless speed control for both directions.
* Workhead spindle drive from D.C. adjustable speed motor.
* Swivel table equipped with a dial indicator function with adjusting device and aids in making exact setting.
* Swivel table equipped with a dial indicator function with adjusting device and aids in making exact setting.
* Air bearing provides convient means of moving the workhead and tailstocks.
* Work carriage has telescoping guard to protecting sliding way from dirt.
Standard Equipment:
* Face and side wheel dressing attachment
* Grinding wheel flange
* Wheel balancing arbor
* Wheel flange removal
* Cemented carbide center
* Levelling screws and plates
* Splash guard
* Wheel dressing tool
* Standard grinding wheel
* Touch-up paint
* Table swivel indicating dial gauge
* Standard tools and tool box
Extra Equipment:
* Work rest (2-point steady rest)
* Grinding wheel balancing unit
* Magnetic coolant filter
* Radius wheel dressing attachment
* Extra grinding wheel
* Extra wheel flange
* 3-Jaw self-centering chuck with back plate
* 4-Jaw chuck with back plate
* Frequency converters for grinding wheels
* Light-emitting diodes
Type Selection:
* UH-Hydraulic table traverse, wheelhead rapid approach and retraction. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
