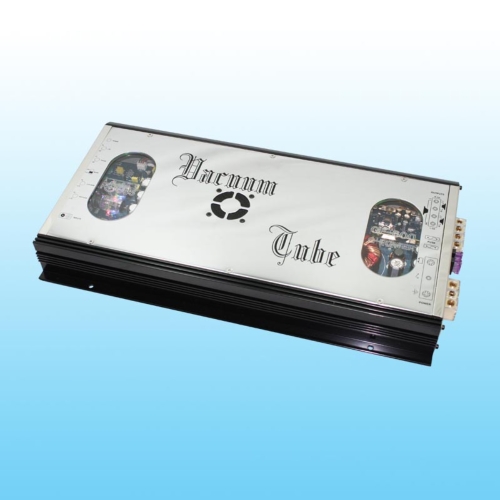

Two Channels/ Four Channels Amplifiers
|
| Product Description |
| Product Name: |
Two Channels/ Four Channels Amplifiers |
| Model: |
GF-800T/GF-600T/GF-600B |
| Material: |
Aluminum sheet |
| Color: |
Silver-white panel with black edges |
| Minimum order: |
10ps |
| Delivery Lead Time: |
Prompt delivery |
|
GF-800T
Power output: 75Wx4/4Ω, 150Wx4/2Ω, 150Wx2/4Ω
Impedance: 4Ω, 2Ω
S/N ratio: >95db
Voltage: 11.5~14.4V
Channels: 4CH, 2CH
Dimensions: 420 x 235 x 50mm
Frequency response: 10Hz~30KHz±2db
Low-frequency range: 40Hz~240Hz/12db SNAdjustable gain: 0.25~6V
Remarks:--Front channel: 40-240Hz--Crossover with front/rear channel--Philips 5654 vacuum tube; users may change tubes of same number.
GF-600T
Power output： 150Wx2/4Ω,300Wx2/2Ω, 450Wx1/4Ω, 900Wx1/2Ω
Impedance： 4Ω 2Ω
S/N ratio： >95db
Voltage： 11.5~14.4V
Channels： 2CH.1CH
Dimensions： 420x235x50mm
Frequency response： 10Hz~30KHz +-2db
Low-frequency range： 40Hz~150Hz/12db SNAdjustable gain： 0.25~6V
Remarks: --Low Pass: 40-150Hz--Philips 5654 vacuum tube, users may change tubes of same number--Can be adjusted to left or right separately
GF-600B
Power output：150W*2*4Ω, 300W*2*2Ω, 450W*1*4Ω, 900W*1*2Ω
S/N ratio：>95dB
Voltage：11.5~14.4
Channels： 2CH.1CH
Dimensions：420*235*50mm
Frequency response：10Hz~30KHz
Low-frequency range：40~150Hz/12dB
Adjustable gain：0.25~6V
Remarks:--Low Pass: 40-150Hz--Can be adjusted to left or right separately |
|
|
