Product Information - HEAVY DUTY BED TYPE MILLING MACHIN
|
Click for a larger picture

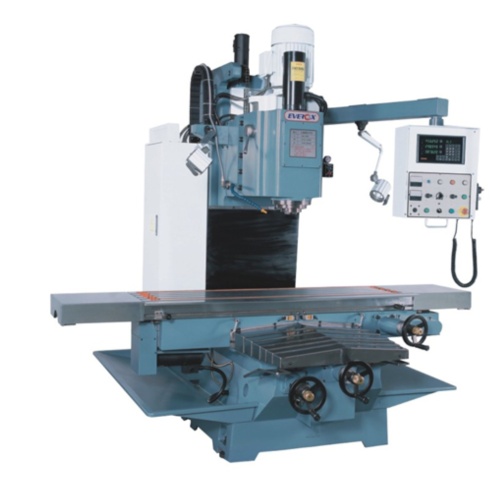

HEAVY DUTY BED TYPE MILLING MACHIN
|
| Product Description |
| Product Name: |
HEAVY DUTY BED TYPE MILLING MACHIN |
| Model: |
EM-1460VF |
|
| > Detail Specifications / Descriptions |
TRAVEL:
◎Longitudinal travel-x：1400mm
◎Cross travel-Y：600mm
◎Vertical travel-z：600/700/800/900mm
TABLE:
◎Table size：1702×410mm
◎T Solts：4×18×70mm
◎Table load：1200kgs
◎Rapid feed：X,Y,Z axis 10－3000/4800mm/min
SPINDLE:
◎Spindle taper：NT50
◎Quill diameter：Ø 129mm
◎Spindle speed：60-3000 rpm / min
◎Distance from pindle end to eadle：720/820/920/1020mm
◎Distance from spindle center to column：610mm
MOTOR
◎Main motor：10HP/4P
◎X,Y,Z axis servo motors：：4.5Nm
◎Coolant pump：1/8HP |
|
