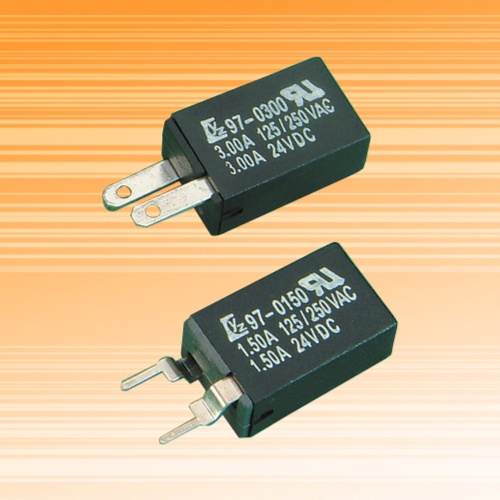

Product Information - 97 Series
| > Detail Specifications / Descriptions |
Engineering Information：
Rating : 0.5 — 15Amp . Input Power :125/250Vac 50Vdc 50-60Hz . Interrupting Capacity:200Amp
125Vac/250Vac. Dielectric Strength : 1,500Vac 1 minute. Resettable Overload Capacity : 10 times rated
current . Voltage Drop: Less than 0.25V .Insuiation Resistance : >500 Meagaohms .Temperature Rise
at Terminal Black : Less than 65 ℃ at 100 % of rated current applied continuously at 25℃ .
Contact Endurance : 125Vac × 150 % of rated current >500 Cycles.
Calibration (at 25℃)
100%of rated current :hold,No-Trip
150%of rated current :Trip in one Hour
200%of rated current :2-40 seconds Trip
300% of rated current :0.6-3.5 seconds Trip |
|
97 Series
|
